5103309-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5103309-1
Datasheet:
Description:

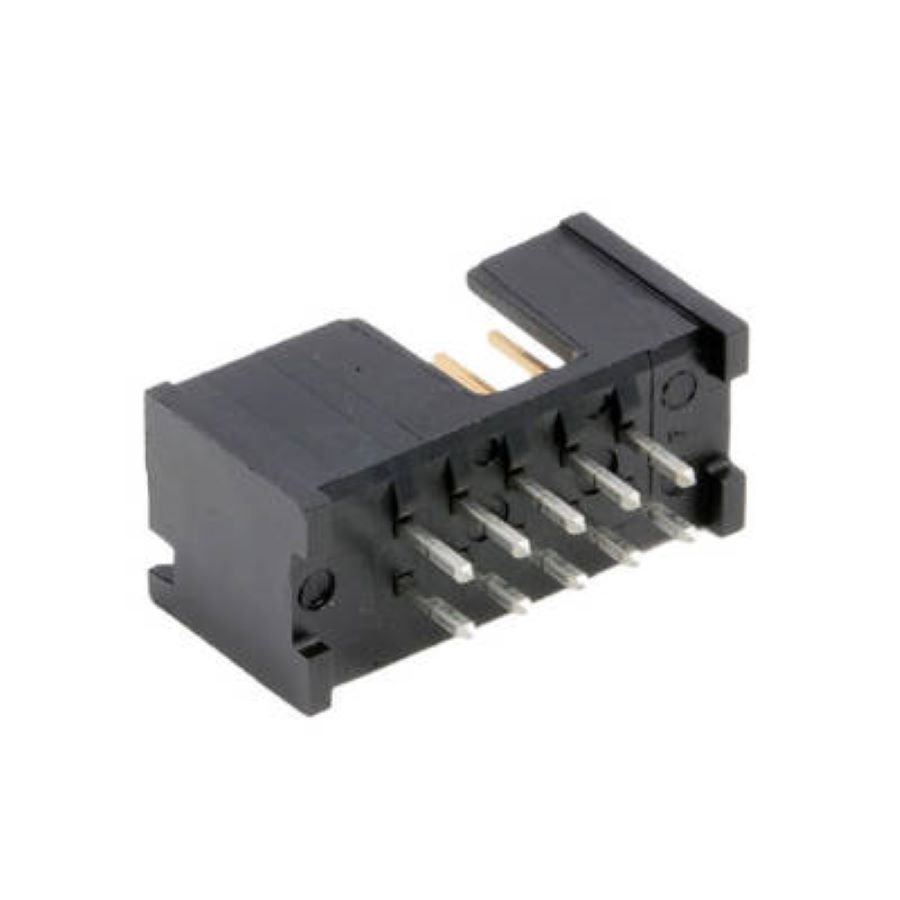

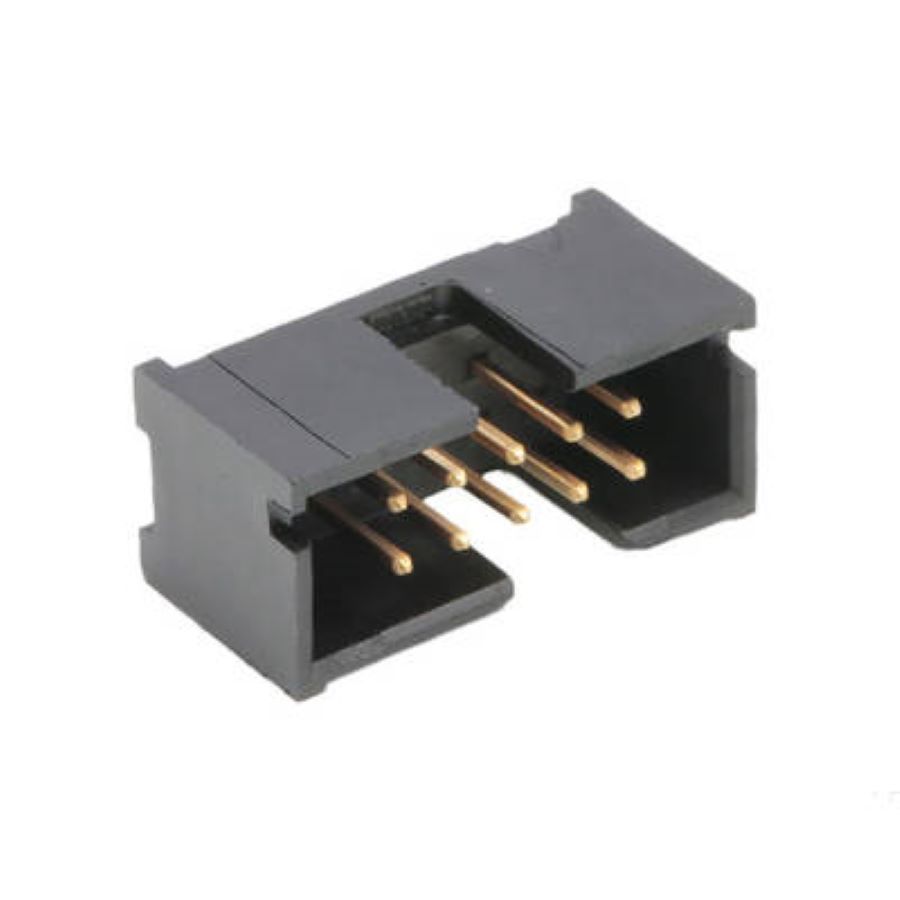

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 8.813 mm |
| Packaging | Reel |
| Depth | 9.14 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Lead Length | 3.048 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Plug (Male) |
| Number of Contacts | 10 |
| ELV | Compliant |
| Body Material | Thermoplastic |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| PCB Mounting Orientation | Vertical |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Contact Shape | Square |
| Shrouded End Dimension | 3.81 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Mating Connector Lock | Without |
| Termination Post Length | 3.05 mm |
| PCB Mount Retention | Without |
Stock: 199
Distributors
pcbx
pcbxUnit Price$1.42858
Ext.Price$1.42858
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.42858 | $1.42858 |
| 10 | $1.17888 | $11.78880 |
| 25 | $1.07588 | $26.89700 |
| 50 | $0.98188 | $49.09400 |
| 100 | $0.89609 | $89.60900 |
| 300 | $0.86015 | $258.04500 |
| 500 | $0.82566 | $412.83000 |
| 1000 | $0.79511 | $795.11000 |
